DESIGN

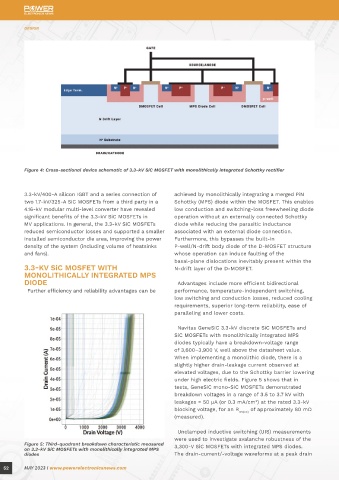

Figure 4: Cross-sectional device schematic of 3.3-kV SiC MOSFET with monolithically integrated Schottky rectifier
3.3-kV/400-A silicon IGBT and a series connection of achieved by monolithically integrating a merged PiN
two 1.7-kV/325-A SiC MOSFETs from a third party in a Schottky (MPS) diode within the MOSFET. This enables
4.16-kV modular multi-level converter have revealed low conduction and switching-loss freewheeling diode
significant benefits of the 3.3-kV SiC MOSFETs in operation without an externally connected Schottky
MV applications. In general, the 3.3-kV SiC MOSFETs diode while reducing the parasitic inductance
reduced semiconductor losses and supported a smaller associated with an external diode connection.
installed semiconductor die area, improving the power Furthermore, this bypasses the built-in
density of the system (including volume of heatsinks P-well/N-drift body diode of the D-MOSFET structure
and fans). whose operation can induce faulting of the
basal-plane dislocations inevitably present within the
3.3-KV SiC MOSFET WITH N-drift layer of the D-MOSFET.
MONOLITHICALLY INTEGRATED MPS
DIODE Advantages include more efficient bidirectional
Further efficiency and reliability advantages can be performance, temperature-independent switching,
low switching and conduction losses, reduced cooling
requirements, superior long-term reliability, ease of
paralleling and lower costs.
Navitas GeneSiC 3.3-kV discrete SiC MOSFETs and
SiC MOSFETs with monolithically integrated MPS
diodes typically have a breakdown-voltage range
of 3,600–3,900 V, well above the datasheet value.
When implementing a monolithic diode, there is a
slightly higher drain-leakage current observed at
elevated voltages, due to the Schottky barrier lowering
under high electric fields. Figure 5 shows that in
tests, GeneSiC mono-SiC MOSFETs demonstrated
breakdown voltages in a range of 3.5 to 3.7 kV with
leakages ≈ 50 µA (or 0.3 mA/cm ) at the rated 3.3-kV
2
blocking voltage, for an R DS(on) of approximately 80 mΩ
(measured).
Unclamped inductive switching (UIS) measurements
were used to investigate avalanche robustness of the
Figure 5: Third-quadrant breakdown characteristic measured 3,300-V SiC MOSFETs with integrated MPS diodes.
on 3.3-kV SiC MOSFETs with monolithically integrated MPS
diodes The drain-current/-voltage waveforms at a peak drain
52 MAY 2023 | www.powerelectronicsnews.com
DESIGN
SUMMARY
Deploying SiC in inverters will accelerate the adoption
of energy storage technologies and make them critical
elements of future grids. Integrating a BESS to an MV
grid through an isolated topology shows that using
3.3-kV single SIC MOSFETs enables higher system
efficiency, lower operating temperature and smallest
die size, compared with an equivalent silicon IGBT or
two 1,700-V SiC MOSFETs in series.
GeneSiC 3.3-kV SiC MOSFETs with monolithically
integrated monolithic MPS diodes achieve breakdown
voltages well above 3.3 kV and demonstrate smooth
switching performance while fully activating the
monolithic MPS diode. This significantly reduces power
losses in third-quadrant operation and enhances
Figure 6: Drain-current and drain-voltage waveforms from
UIS measurement performed on a 3.3-kV SiC MOSFET with device reliability by alleviating bipolar degradation. UIS
monolithically integrated MPS diode testing reveals a robust avalanche capability and
short-circuit withstand times to 4.5 µs.
current of 30 A are shown in Figure 6. Drain voltage
rises to a maximum of 4,200 V during the test, and a
maximum avalanche withstand time (t ) of 35 µs and
AV
single-pulse avalanche energy (E ) of 2.6 J (or
AS
7.6 J/cm ) are extracted from the UIS measurements.
2
In comparison, the test performed on a discrete
3,300-V discrete SiC MOSFET with the same load
inductance extracted an E of 4.8 J.
AS
SHORT-CIRCUIT ROBUSTNESS
The short-circuit robustness of the GeneSiC
MOSFETs was evaluated by subjecting 3.3-kV discrete
SiC MOSFETs with and without monolithically
integrated MPS diodes to a 1,200-V DC-link.
A 20-V/–5-V gate-drive scheme was used and the
device was mounted on a 25°C baseplate. The drain
current increases to a maximum of 525 A during the
short-circuit pulse and a short-circuit withstand time Figure 7: Drain-current waveform recorded during a
of 4.5 µs was measured (Figure 7). short-circuit test performed on a 3,300-V SiC MOSFET with
monolithically integrated MPS diode at a DC-link voltage of
1,200 V
Reference
▶ 1Mainali et al. (September 2014). “A Transformerless Intelligent Power Substation: A three-phase SST
enabled by a 15-kV SiC IGBT.” IEEE Power Electronics Magazine, Vol. 2, No. 3, pp. 31–43.
▶ 2Anurag et al. (June 2019). “Design Considerations and Development of an Innovative Gate Driver for
Medium Voltage Power Devices with High dv/dt.” IEEE Transactions on Power Electronics, Vol. 34, No. 6,
pp. 5256–5267.
▶ 3Tripathi et al. (2016). “A MV intelligent gate driver for 15kV SiC IGBT and 10kV SiC MOSFET.” 2016 IEEE
Applied Power Electronics Conference and Exposition (APEC), pp. 2076–2082.
▶ 4Marzoughi et al. (October 2017). “Characterization and Evaluation of the State-of-the-Art 3.3-kV 400-A
SiC MOSFETs.” IEEE Transactions on Industrial Electronics, Vol. 64, No. 10, pp. 8247–8257.
