 in the Vienna rectifier front end, while devices with 42-mΩ R   are employed in the DAB stages.
 DS(on)

 The DAB stages run between 140 and 400 kHz and achieve zero-voltage switching in most of their

 operation points.


 The entire system achieves a power density of 10 kW/l or 163 W/in. , respectively, at a peak efficiency
 3
 of above 95%.

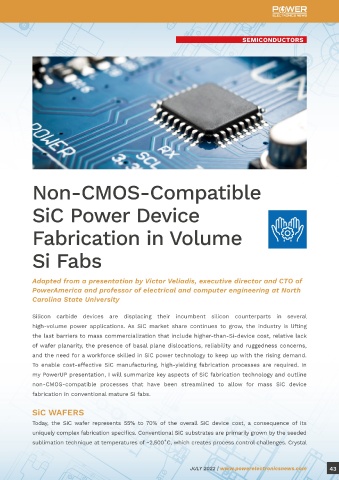

            Non-CMOS-Compatible



            SiC Power Device



            Fabrication in Volume



            Si Fabs




            Adapted from a presentation by Victor Veliadis, executive director and CTO of
            PowerAmerica and professor of electrical and computer engineering at North
 Figure 3: 10-kW EV charging unit supporting a wide output voltage range and a   Carolina State University
 power density of 10 kW/l (163 W/in. )
 3
            Silicon  carbide  devices  are  displacing  their  incumbent  silicon  counterparts  in  several
 (Note: The authors would like to thank Professor Johann Kolar, Yunni Li, and Michael Haider from   high-volume  power  applications. As  SiC  market  share  continues to  grow, the  industry  is  lifting

 the Power Electronic Systems Laboratory at ETH Zurich for their ongoing cooperation on the EV   the last barriers to mass commercialization that include higher-than-Si-device cost, relative lack
 charging unit).  of wafer planarity, the presence of basal plane dislocations, reliability and ruggedness concerns,
            and the need for a workforce skilled in SiC power technology to keep up with the rising demand.
            To enable cost-effective SiC manufacturing, high-yielding fabrication processes are required. In
            my PowerUP presentation, I will summarize key aspects of SiC fabrication technology and outline
            non-CMOS-compatible  processes  that  have  been  streamlined  to  allow  for  mass  SiC  device
 Reference  fabrication in conventional mature Si fabs.


            SiC WAFERS

   ▶ PowerUP Expo 2022  Today, the  SiC wafer  represents  55% to 70%  of the  overall  SiC  device  cost,  a  consequence  of  its
            uniquely complex fabrication specifics. Conventional SiC substrates are primarily grown by the seeded
            sublimation technique at temperatures of ~2,500˚C, which creates process control challenges. Crystal
