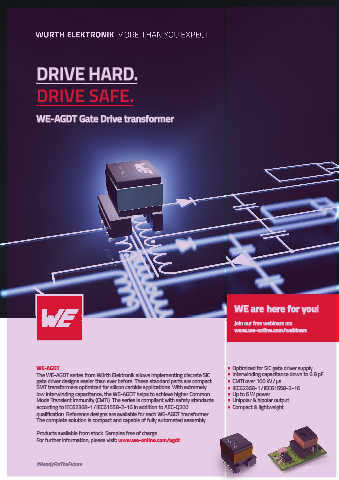

DRIVE HARD.



              DRIVE SAFE.




              WE-AGDT Gate Drive transformer






























                                                                                                                          © eiSmart








                                                                                   WE are here for you!


                                                                                   Join our free webinars on:
                                                                                   www.we-online.com/webinars







              WE-AGDT                                                            • Optimized for SiC gate driver supply
              The WE-AGDT series from Würth Elektronik allows implementing discrete SiC   • Interwinding capacitance down to 6.8 pF
              gate driver designs easier than ever before. These standard parts are compact   • CMTI over 100 kV / µs
              SMT transformers optimized for silicon carbide applications. With extremely   • IEC62368-1 / IEC61558-2-16
              low interwinding capacitance, the WE-AGDT helps to achieve higher Common   • Up to 6 W power
              Mode Transient Immunity (CMTI). The series is compliant with safety standards   • Unipolar & bipolar output
              according to IEC62368-1 / IEC61558-2-16 in addition to AEC-Q200    • Compact & lightweight
              qualification. Reference designs are available for each WE-AGDT transformer.
              The complete solution is compact and capable of fully automated assembly.

              Products available from stock. Samples free of charge.
              For further information, please visit: www.we-online.com/agdt
